ASSAN AG63 PRO ANTI-SIDESLIP BRAKE GYRO
The Assan AG63 Pro is designed for RC Airplane with front steering wheel and electromagnetic brake rear wheel mounted. The gyroscope controls the steering angle of the steering wheel, corrects the airplane off tracking tendency, and accurately responds to the direction of the rocker steering action to improve the airplane problem - easy to turn over when cornering under the high speed. RC Aircraft high-speed running in the open electromagnetic brake, the gyroscope controls the left and right electromagnetic brake strength, so that the aircraft brake does not run away.
The AG63 Pro gyro integrates a braking and steering gyroscope, an electromagnetic brake controller, which are applied to a fixed-wing model aircraft with
the steering nose wheel.
The AG63 Pro gyro can correct the deflective trend of model aircraft taxiing on the ground and respond accurately to the rudder stick.
The AG63 Pro gyro can control the force of the electromagnetic brake to keep the model aircraft taxiing on the right way.
The most important highlight of the AG63 Pro gyro is that it uses intelligent adaptive algorithm, which eliminates the tedious operation such as setting
sensor direction and adjusting sensitivity of traditional model gyroscope products. It only needs to automatic direction adaptation once during installation,
and there is no need to adjust when using, so that its installation and use is very simple and convenient.
The AG63 Pro gyro has outstanding effects on taxiing correction and braking correction, and can be widely used in all kinds of model aircraft, such as
scale model aircraft using Electric Ducted Fan or JET power

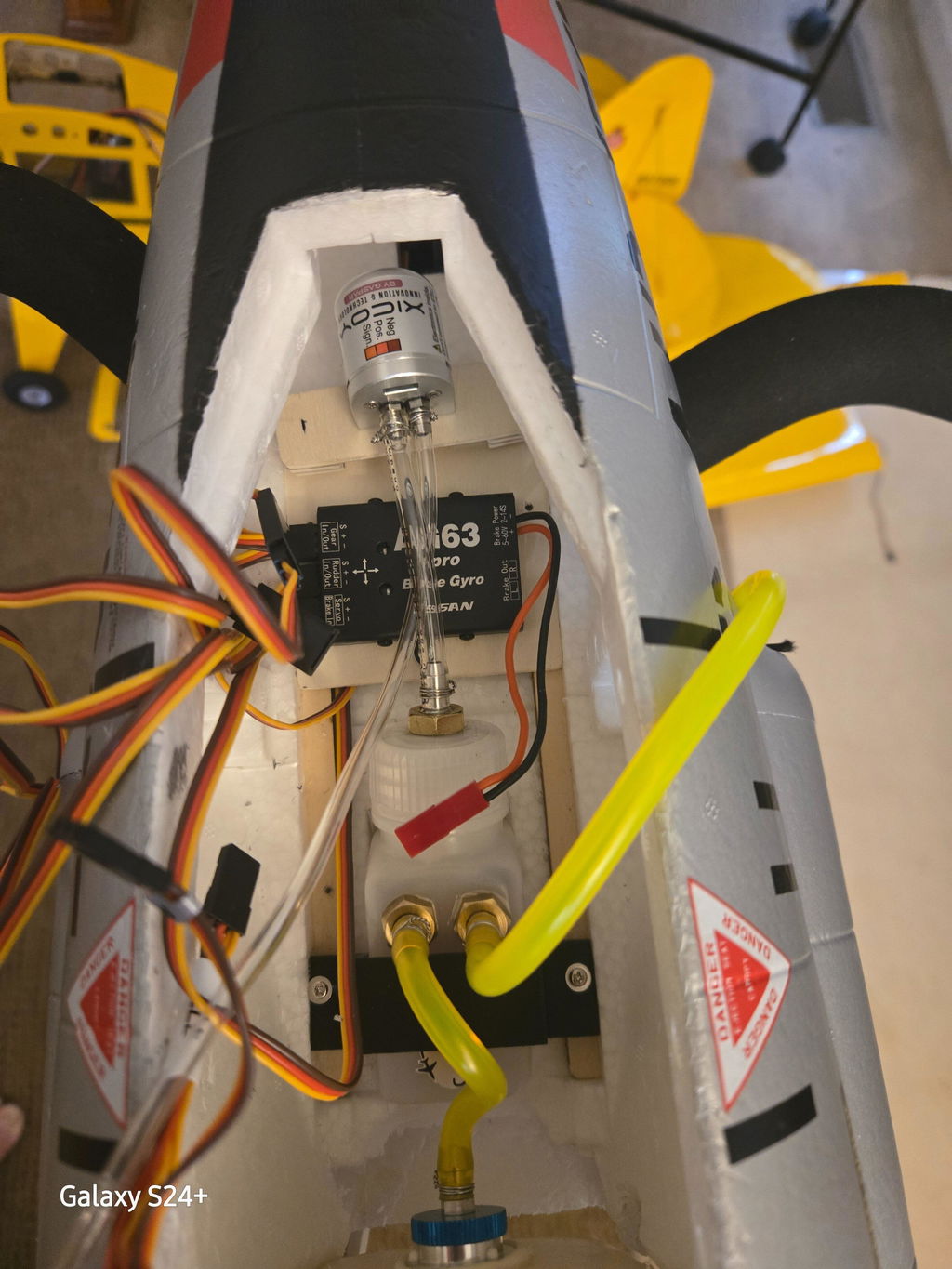

The AG63 Pro gyro supports six-direction installation, which can either make the gyro bottom surface parallel to the bottom plane of the model aircraft (the
gyro label face up or down), or make any one of the four arrows on the gyro label perpendicular to the bottom plane of the model aircraft. The gyro is
securely attached to the model aircraft using screws or double-sided adhesive. Caution, the AG63 Pro gyro cannot be installed near the motor or engine !
SPECIAL FUNCTIONS
Tilt the model aircraft over 40°, the AG63 Pro gyro will stop correction function after two seconds, but the steering nose wheel will respond to the
transmitter rudder stick, so that you can observe and adjust the steering nose wheel.
Retract the landing gear of the model aircraft, the AG63 Pro gyro will immediately stop correction function and keep the steering nose wheel in neutral
position. Extend the landing gear of the model aircraft, the AG63pro gyro will start correction function after 5 seconds.
The braking force of AG63 Pro gyro is adjustable. If the knob or slider on the transmitter is used to control the brake channel signal, the braking force can
be continuously adjusted. If the switch on the transmitter is used to control the brake channel signal, adjust the high travel of the brake channel on the
transmitter to adjust the braking force.
If the electromagnetic brake is not turned off for more than one minute, the AG63pro gyro will automatically turn off the brake to prevent the
electromagnetic coil in the brake from overheating.
If the brake power supply voltage is higher than 12V, the brake output voltage is 12V. If the brake power supply voltage is lower than 12V, the brake
output voltage is the same as the brake power supply voltage.
