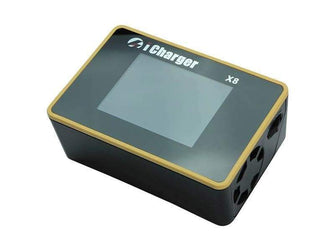

iCharger X8
The Junsi iCharger X8 Lilo/LiPo/Life/NiMH/NiCD DC Battery Charger features 8S capabilities and up to 1100W of power and up to 30 Amps of charge current.
Features:
- X8 uses advanced Synchronous buck-boost DC/DC converter technology with high power, high current and high-performance power conversion circuit. The maximum charge power capacity is up to 1100W, the maximum charge/discharge current of a channel is up to 30A.
- X8 Supports 8s LiPo, Lilo, LiFe, LiHV, LTO and NiZn batteries, with maximum 2A balance current, and adopts a unique balance calculation of internal resistance correction. Supports 1-25s NiMH/NiCd batteries and 1-15s Pb batteries.
- With digital-power mode for great protection (over-current protection, over-voltage protection, input under-voltage protection, input undercurrent protection, and etc.)
- Intelligent fan control. Sensing internal temperature via the internal temperature sensor, to thereby control the fan speed.
- Internal temperature protection. When the internal temperature exceeds the Power Reduce temperature, the output power is automatically reduced; and the charger will shut down when temperature exceeds the Shut-down temperature.
- This charger can save 32 parameters sets and support the data import/export to SD card.
- A 2.4" IPS LCD screen provides rich information including current, voltage, power, capacity, internal resistance, control status, time-consuming and temperature, etc.
- Multi-discharge features: self-discharge, regenerative to input discharge, and lithium battery extra expanding discharge.
- Supports measurement for internal resistance of battery offline and online. Can measure not only the internal resistance of the entire battery pack, but also measure the internal resistance of each cell within the lithium battery.
- X8 has protection for reversed polarity (input or output), input voltage/current, battery temperature, charging capacity, overrun time and maximum power etc.
- Supports upgrading the hardware program by USB port or SD card. X8 also supports the “Junsi Console” software and can display, plot and analyze the charge and discharge data by it.
Specifications:
Display: 2.4 " IPS LCD (320×240)
Net weight: 200g
Dimension: 97.5×64.5×37 ±0.5mm
Input voltage range: 9—49VDC
Maximum input current limit: <35A
Maximum charge/discharge current: 30A
Maximum charge power capacity: 1100W
Maximum discharge power capacity: 50W
Maximum regenerative discharge power capacity: 1100W
Maximum extra discharge power capacity: 1000W @33.5V/30A
Maximum current drain for balancing: >2.0A
