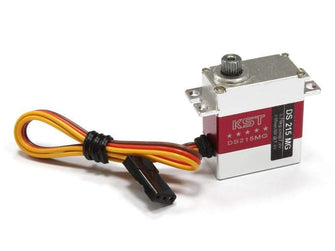

KST 215 Micro Coreless Servo - Version 3.0

KST Servo
|
DS215MG
$36.00 $0.00( / )
Latest version V3.0 with stainless steel gear! This DS215MG servo is made by KST, it used a lot of high end material, like the Coreless Motor, it responds much faster and smoother than ordinary motor, also thanks to the quality IC Chip to control the motor movement, the DS215MG feels...
Add to Wishlist

Latest version V3.0 with stainless steel gear!

This DS215MG servo is made by KST, it used a lot of high end material, like the Coreless Motor, it responds much faster and smoother than ordinary motor, also thanks to the quality IC Chip to control the motor movement, the DS215MG feels like no others, it moves Lightning Fast and still have Pin Point Accuracy! Even at 4.8V, it got 0.07 sec / 60 degrees and 2.5kg / cm performance, We tested it, this servo really delivers!



Specifiations:

  • Full CNC Metal Gears Coreless DC Motor CNC Aluminum casing
  • Dual Ball Bearings.
  • Made for the high demanding Flybarless Helicopters
  • Use on both Cyclic or Rudder
  • Operating Voltage:DC6.0V-7.4V
  • Size:23*12*27.50mm
  • Torque:   3.70Kg.cm@7.4V.   3.10Kg.cm@6.0V
  • Speed:  0.05sec/60°@7.4V. 0.06sec/60°@6.0V
  • Weight:20g
  • Working Frequence:1520us/333Hz, 800us-2200us
  • Ball Bearing: 2BB
  • Φ12mm Coreless Motor







Type:

Servo

Vendor:

KST Servo

SKU:

DS215MG

Weight:

0.19 lb
