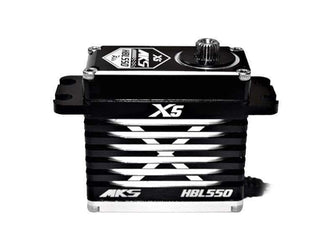

MKS HBL550 X5 Digital Brushless Ultra Speed/Torque High Voltage Servo
Dead Band : 0.001ms (Default)
Control System+Pulse Width Control
Working Frequence : 1520μs / 333hz
Operating Voltage : 5 ~ 8.4 Volts
Operating Temperature Range : -10 to + 60 Degree C
Operating Speed (6V)0.117 sec/60° degrees at no load
Operating Speed (7.4V)0.094 sec/60° degrees at no load
Operating Speed (8.4V)0.085 sec/60° degrees at no load
Stall Torque (6V)402oz/in (29 kg/cm)
Stall Torque (7.4V)499 oz/in (36 kg/cm)
Stall Torque (8.4V)527 oz/in (38 kg/cm)
Motor Type : Brushless Motor
Potentiometer Drive : Indirect Drive
Bearing Type : 12x8 mm Double bearings
Gear Type : Alloy gear
Dimensions : 40 x 20 x 38.5 mm
Weight: 79.5 g
Cheaper than anyone else that i could find online. Shipped super fast
Cheaper than anyone else that i could find online. Shipped super fast
