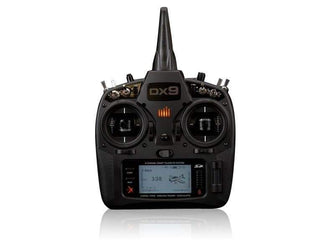

Spektrum DX9 Black 9-Channel DSMX Transmitter Only Mode 2

Spektrum
|
SPMR9910
$479.99 $0.00( / )
Key Features 9 fully proportional channels Exclusive Black Edition finish 11ms frame rates with capable receivers Airplane, heli, sailplane and multirotor programming 250-model internal memory Programmable voice alerts Wireless trainer function Superior ergonomics that fit the way you fly Direct access to system setup from function menu - no need...
Add to Wishlist

Key Features

  • 9 fully proportional channels
  • Exclusive Black Edition finish
  • 11ms frame rates with capable receivers
  • Airplane, heli, sailplane and multirotor programming
  • 250-model internal memory
  • Programmable voice alerts
  • Wireless trainer function
  • Superior ergonomics that fit the way you fly
  • Direct access to system setup from function menu - no need to power off
  • Active gyro and governor trim in heli
  • Large, backlit LCD screen
  • 10 aircraft wing types and 6 tail types
  • 7 swashplate types
  • 5 sailplane wing types and 3 tail types
  • Multirotor flight mode setup, checklists and voice alerts
  • Up to 10 sailplane flight modes
  • 5 airplane and heli flight modes
  • 10 programmable mixes - normal or 7-point curve
  • Dual aileron, elevon, and V-tail differential
  • 7-point throttle curves for airplanes and helicopters
  • 7-point pitch and tail curves for helicopters
  • EN328 compatible

Overview

Like the original DX9, the Black Edition gives you an incredible suite of features that includes voice alerts, 250-model memory, programming for four model types and a wireless trainer link. To this it adds is a stunning, black finish that further sets it apart from everything else in its class.

Programmable Voice Alerts

The DX9 lets you keep tabs on important functions without ever taking your eyes off what you're flying. You can program voice alerts to call out what flight mode you've chosen or report telemetry information on demand. If an alarm goes off, you won't have to look at the transmitter display to see what's happening. The DX9 will tell you.

Wireless Trainer Link

This exclusive Spektrum technology gives DX9 users the ability to wirelessly link up with other Spektrum transmitters and specially-equipped Spektrum FPV headsets. Once bound to another transmitter or component, ModelMatch™ technology will allow the DX9 to re-link without having to go through the bind process again.

With Wireless Trainer Link, you could:

  • Wirelessly "buddy box" with another DSM2®/DSMX® transmitter when teaching someone to fly.
  • Assign gimbal functions to a 2nd 'camera' transmitter when flying a camera drone so you can focus on avoiding obstacles and maintaining visual contact while someone else lines up the shot.
  • Link with specially-equipped Spektrum FPV headsets to wirelessly control head tracking and remotely change video camera frequencies.

250-Model Memory

The enormous capacity of the DX9's on-board memory means you will rarely, if ever, need to juggle models between transmitter memory and your SD card. The model memory menu is easy to navigate too. Only memory slots with model settings saved to them will appear. You won't have to scroll through empty slots or move models around if one is deleted.

Because the DX9 uses the same Spektrum™ AirWare™ software as many other Spektrum transmitters, you can share model setups across platforms with almost any Spektrum pilot.

Fly Smarter with Built-In Telemetry

The built-in telemetry feature gives you real-time information on things like your model's battery voltage, signal quality, engine or motor temperature, airspeed, altitude and more.*

Using the voice alert system, you can program the DX9 to tell you when specific telemetry values reach or exceed limits you define. You can also have it call out a sequence of telemetry values on demand with the flip of a switch. If you want to review telemetry after a flight, the DX9 can be set up to record the data to its SD card.

*Requires a Spektrum telemetry module and telemetry sensors, sold separately.

Superb Ergonomics

The weight distribution and ergonomics of the DX9 have been optimized to fit the way you fly. The result is a sense of balance and comfort that perfectly complements the speed and precision of DSMX technology.

Notable features include:

  • Comfortable, no-slip rubber grips
  • Adjustable stick length and tension
  • Smooth, quad-bearing gimbals
  • User-adjustable mode configurations (1, 2, 3 or 4)
  • User-assigned switch functions
  • Easy-to-read backlit screen
  • Intuitive SimpleScroll™ programming interface

Programming Features

The DX9 comes with an impressive list of programming features that rivals that of much more expensive transmitters.

Airplane

  • 10 Wing Types: Normal, Dual Aileron, Flaperon, 1 Aileron 1 Flap, 1 Aileron 2 Flap, 2 Aileron 1 Flap, 2 Aileron 2 Flap, Elevon A, Elevon B, 4 Aileron
  • 6 Tail Types: Normal, V-Tail A, V-Tail B, Dual Elevator, Dual Rudder, Dual Rudder/Elevator
  • Aileron, Flaperon, Elevon and V-Tail Differential
  • Flap System with Elevator Compensation
  • 5 Flight Modes
  • Dual Rates and Expo
  • 7-Point Throttle Curve
  • Preset Mixes: Elevator-to-Flap, Aileron-to-Rudder, Rudder-to-Aileron/Elevon
  • 10 Programmable Mixes - Select Normal or Curve for Each

Helicopter

  • Gyro and Governor
  • 7-Point Throttle Curve
  • 7-Point Pitch Curve
  • 7-Point Tail Curve
  • 7 Swash Plate Types: Normal, 3-Servo 120°, 3-Servo 135°, 3-Servo 140°, 3-Servo 90°, 4-Servo 90°, 2-Servo 180°
  • 5 Flight Modes, Including Hold
  • Dual Rates and Expo
  • Cyclic-to-Throttle and Swashplate Timing Mixes
  • 10 Programmable Mixes - Select Normal or Curve for Each

Sailplane

  • 5 Wing Types: Single Aileron, Dual Aileron, 2 Aileron 1 Flap, 2 Aileron 2 Flap, 4 Aileron 2 Flap
  • 3 Tail Types: Normal, V-Tail A, V-Tail B
  • Motor Throttle Switch Assignment
  • Dual Aileron and V-tail Differential
  • Camber System
  • Camber Preset
  • 10 Flight Modes
  • Dual Rates and Expo
  • Preset Mixes: Flap-to-Aileron Curve, Aileron-to-Flap, Aileron-to-Rudder, Elevator-to-Flap
  • 10 Programmable Mixes - Select Normal or Curve for Each

Multirotor

  • Multirotor Channel Inputs - ALT (Altitude), ROL (Roll), PIT (Pitch), YAW
  • Multirotor Checklists, Warnings and Voice Alerts
  • Simplified Multirotor Flight Mode Setup and Switch Assignment

Specs

Band:2.4GHz
Battery:2000mAh Li-Ion
Channels:9
Computer Radio:Yes
Frame Rate:11/22 Ms
Model Memory:250
Model Type:Multirotor,Sailplane,Helicopter,Airplane
Modes:Mode 3,Mode 4,Mode 1,Mode 2
Modulation:DSMX,DSM2
Range:Full
Resolution:2048
Telemetry:Yes
Transmitter (Tx) Battery Type:Lithium Ion Battery
Type:

Radio TX

Vendor:

Spektrum

Weight:

0.0 lb

Customer Reviews

Based on 9 reviews
100%
(9)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
R
Ricardo R.
Awesome Radio

For a guy that does’t know to much about radios this Spektrum transmitter exceeded my expectations. It’s very intuitive and easy to program specially for fixed wing aircraft. Mixing flaps with elevators or using different flight modes is a breeze to program with this Radio. Currently I’m using it with two EDF jets with the AR8020T RX and no issues so far.

L
Leonardo Valverde
Great upgrade from DX8

Very pleased so far with the DX9 Black Edition! Solid transmitter! Thanks

s
scrc511
DX9

This is my second DX9 BE, more and more I use this with my Goblin 380 from Futaba, I’m enjoying it very much now. Simplicity and reliability, can’t go wrong with this Radio. Solid radio, feels good in your hand all around, easy to use.

W
W. E. (Fred) Wallace
Spektrum DX9 Black

Bought this radio to upgrade from my Spektrum DX8 1st addition. Nothing wrong with the DX8. However the new DX9 Black has a few more bells and whistle's such as voice warnings. The DX9 black is similar in switch positioning and menu navigation to the DX8. I'm still exploring the menus and finding different ways of using functions. Having the multi rotor/drone functions was a big plus, as now it appears I may be able to eliminate using several different proprietary transmitters .

S
Steven Barnett
Great Radio

I upgraded from an old 2014 DX8 which I still own and use but now I mainly us the DX9. Love It!!!

m
mark weber

This is an awesome radio

J
Jimmy Lam

Love it

B
Bijan S.

Refer to title

G
Gerard W.

As typical of Spectrum radios this has very nice features at a reasonable price point. I really like the voice warnings/comments and feel they add a lot to each flight experience. I immediately upgraded the firmware and voice files to make sure I had the latest software. Each process when off without a hitch. At first I was not impressed with the feel of the radio as it is light and does not feel robust like others I have used. Time will tell if everything holds up but I suspect it will be fine. Again for the price its a very nice radio.
