TORQ BLS Mini Brushless HV Servo Combo

TORQ Servos
|
TORQ-BLS-CB2
$368.00 $380.00( / )

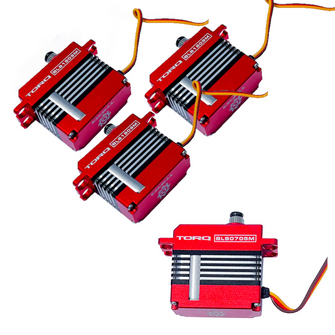

Combo includes:  BLS1809M (TORQ BLS1809M Mini Brushless HV Servo) * 3pcs BLS0705M (TORQ BLS0705M Mini Brushless HV Cyclic/Rudder Servo) * 1pcs This is a high-end-class combo. It's recommended for helicopter sized 550 - 600. BLS1809M (TORQ BLS1809M Mini Brushless HV Servo) Features:- Brushless Motor Technology for the Ultimate Power &...
Add to Wishlist

Combo includes:

  • BLS1809M (TORQ BLS1809M Mini Brushless HV Servo) * 3pcs
  • BLS0705M (TORQ BLS0705M Mini Brushless HV Cyclic/Rudder Servo) * 1pcs

This is a high-end-class combo. It's recommended for helicopter sized 550 - 600.

BLS1809M (TORQ BLS1809M Mini Brushless HV Servo)

Features:
- Brushless Motor Technology for the Ultimate Power & Control
- Incredible Levels of Speed & Performance
- Ultra Precise, High Resolution Control
- Fully Replaceable Steel Gear Train for Maximum Strength
- Excellent Thermal Dissipation via Finned 6061 Aluminum Case
- 8.4V High Voltage Ready
- Optimized for Heli, Airplane & Jet Aircraft
- Dual Ball Bearing Construction

Speed:
0.07 sec / 60° @ 8.4V
0.08 sec / 60° @ 7.4V
0.09 sec / 60° @ 6.0V

Torque:
24Kg.cm / 333.29 oz in. @ 8.4V
22Kg.cm / 305.52 oz in. @ 7.4V
18Kg.cm / 249.97 oz. in. @ 6.0V

Specifications:
Motor Type: Brushless
Servo Arm Type: Futaba
Working Frequency: 1520us / 333Hz  or  760us / 560Hz (need the TBOX Program Card)
Weight: 45g
Dimensions: 35.5mm x 15mm x 35.5mm (LxWxH)
Voltage Range: 6.0V - 8.4V

Usage Note:
Servo Grommet is suggested use if you use our servo on Nitro Heli.

BLS0705M (TORQ BLS0705M Mini Brushless HV Cyclic/Rudder Servo)

Features:
- Brushless Motor Technology for the Ultimate Power & Control
- Incredible Levels of Speed & Performance
- Ultra Precise, High Resolution Control
- Fully Replaceable Steel Gear Train for Maximum Strength
- Excellent Thermal Dissipation via Finned 6061 Aluminum Case
- 8.4V High Voltage Ready
- Optimized for Heli
- Dual Ball Bearing Construction

Speed:
0.05 sec / 60° @ 8.4V
0.06 sec / 60° @ 7.4V
0.07 sec / 60° @ 6.0V

Torque:
15Kg.cm / 208.31 oz in. @ 8.4V
13Kg.cm / 180.53 oz in. @ 7.4V
10Kg.cm / 138.87 oz. in. @ 6.0V


Specifications:
Motor Type: Brushless
Servo Arm Type: Futaba
Working Frequency: 760us / 560Hz
Weight: 45g
Dimensions: 35.5mm x 15mm x 35.5mm (LxWxH)
Voltage Range: 6.0V - 8.4V

Usage Note:
Servo Grommet is suggested use if you use our servo on Nitro Heli.

Type:

Heli Servo

Vendor:

TORQ Servos

Weight:

0.0 lb
