Xpert R2 Standard Size Aluminum Cyclic Servo

Xpert Servo
|
GS-6401
$144.99 $0.00( / )
Features: Quick release cable that allows easy and quick installation for all helicopters. Brushless motor design provides extremely high speed, top efficiency, and low power consumption. 4096 resolution and SIC (Single Integrated Circuit) for the highest performance and durability. Aluminum upper and center case. Plastic bottom case. Strong metal gear....
Add to Wishlist

Features:

  • Quick release cable that allows easy and quick installation for all helicopters.
  • Brushless motor design provides extremely high speed, top efficiency, and low power consumption.
  • 4096 resolution and SIC (Single Integrated Circuit) for the highest performance and durability.
  • Aluminum upper and center case.
  • Plastic bottom case.
  • Strong metal gear.
  • Glitch-free.
  • Sophisticated error correction.
  • High-Speed, High-precision 12-bit AD converter and CPU calculation.
  • Fail safe.
  • Over current protection.
  • Over temperature protection.
  • Start sonorant.
  • Operating frequency up to 400Hz.



R2 Specs:

Speed (sec/ 60°)@6.0V: .086 sec/60° @7.4V: .07 sec/60° @8.4V: .062 sec/60°
Torque (oz/in)@6.0V: 296.45 oz-in) @7.4V: 366.85 oz-in @8.4V: 416.40 oz-in
Torque (kg/cm)@6.0V: 21.43 kg-cm @7.4V: 26.43 kg-cm @8.4V: 30.00 kg-cm
Type:

Servo

Vendor:

Xpert Servo

Weight:

0.0 lb

Customer Reviews

Based on 7 reviews
86%
(6)
14%
(1)
0%
(0)
0%
(0)
0%
(0)
J
Jared
Well built servo

Using these on my align 760x and they are very smooth. The center play is nearly non existent and there is this ultra smoothness to the travel that makes the stock align or even some mks 777s look sloppy. After a season of use, about 50 flights, these servos still feel tight and precise.

h
hector molina

Xpert R2 Standard Size Aluminum Cyclic Servo

T
TROY A.
Xpert R2

Fast response with good holding power. The detachable cable was very convenient when I had to remove one servo, as I did not have to undo my wiring. I highly recommend.

M
Mark L.
Great Servos

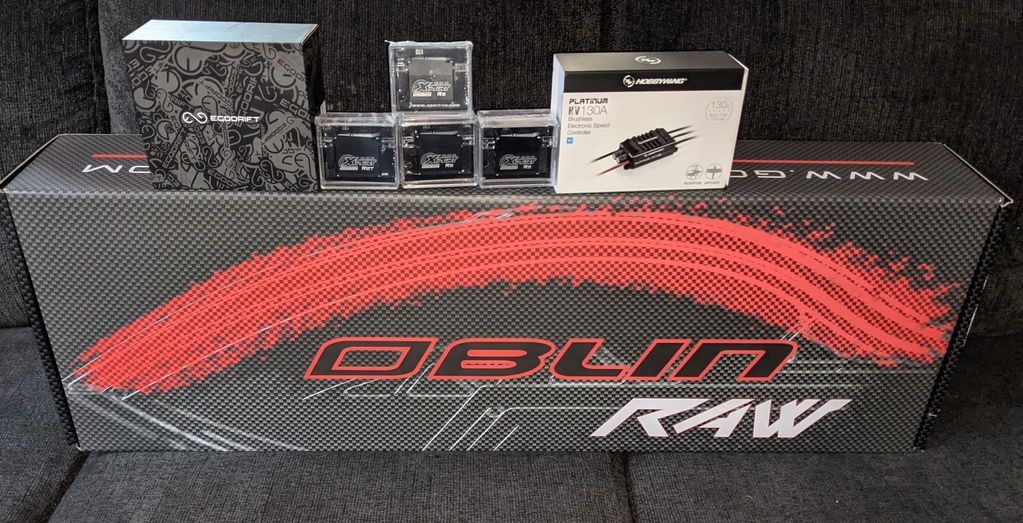

A friend recommended that I try Xpert servos on my Nitro Oxy 5 build, they are high quality and really convenient with the removable servo leads. I like them so much I ordered a second set for my Goblin Raw build.

G
Greg R.
Xpert R2 --- Amazing

I have been flying these servos for over 2 years and absolutely love them. I have logged over 2500 flights with the Xpert line. I have run the R2 specifically in both 700 nitro and electric helis with amazing success. Strong, efficient, durable, and I love the leads. I have never had a lead even come loose. They It makes swapping out or doing heli maintenance a breeze without having to rewire the machine.

https://youtu.be/-9HOrjg7E_g

https://youtu.be/qrG2NYPHEcs

S
Shane B.

These servos are flying great on my Goblin Nitro! Super quiet and very smooth!

D
D. H.

Really love this servo! Going perfect so far. Awesome design features and aesthetics really top it off!
