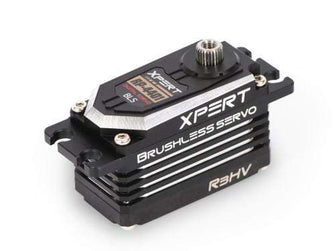

Xpert R3HV Low Profile Aluminum Servo

Xpert Servo
|
RP-4401-HV
$149.99 $0.00( / )
Features  Brushless motor design provides extremely high speed, top efficiency, and low power consumption with 250+ oz-in torque at 8.4V Quick release connector for easy wiring Plastic lower case with center and top aluminum design 4096 resolution and SIC (Single Integrated Circuit) for the highest performance and durability. Light weight...
Add to Wishlist
Features
  • Brushless motor design provides extremely high speed, top efficiency, and low power consumption with 250+ oz-in torque at 8.4V
  • Quick release connector for easy wiring
  • Plastic lower case with center and top aluminum design
  • 4096 resolution and SIC (Single Integrated Circuit) for the highest performance and durability.
  • Light weight design
  • All Aluminum case for the best thermal dissipation and durability.
  • Strong Metal Gear
  • Glitch-free
  • Sophisticated error correction
  • High-Speed, High-precision 12-bit AD converter and CPU calculation
  • Fail safe
  • Over current protection
  • Over temperature protection
  • Start sonorant
  • Sanwa SSR mode compatible

Specifications

TypeQuick Release
Product NameRP-4401-HV R3HV Low Profile Aluminum Servo
Part NameRP-4401-HV R3HV Low Profile Aluminum Servo
Power Supply6.0~8.4V
Speed (sec/ 60°)@6.0V: .070 sec/60° @6.6V: .063 sec/60° @7.4V: .056 sec/60° @8.4V: .049 sec/60°
Torque (oz/in)@6.0V: 180.16 oz-in @6.6V: 198.07 oz-in @7.4V: 222.08 oz-in @8.4V: 252.06 oz-in
Torque (kg/cm)@6.0V: 12.98 kg-cm @6.6V: 14.27 kg-cm @7.4V: 16 kg-cm @8.4V: 18.16 kg-cm
Dimensions40.8X20.2X26.8 mm
Frequency200/333 Hz
Range50~400 Hz
Center Position1520us
Applications1/10 Buggy and Touring Car, airplane wings
Type:

Planes Servo

Vendor:

Xpert Servo

SKU:

RP-4401-HV

Weight:

0.25 lb
