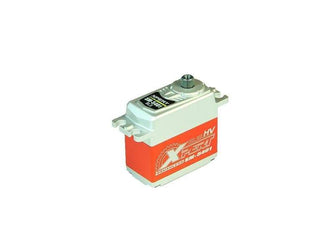

XPERT SM-5401-HV Standard Cyclic Servo
No reviews
$122.49
$149.99( / )
Product Description This is the Xpert RC SM-5401-HV High Voltage (6.0V~8.4V), Standard Size, All Aluminum, One Piece Finish, High Strength Metal Gear, Digital Servo. Features & Specifications Brushless motor design provides extremely high speed, top efficiency, and low power consumption. 4096 resolution and SIC (Single Integrated Circuit) for the highest...
Product Description
This is the Xpert RC SM-5401-HV High Voltage (6.0V~8.4V), Standard Size, All Aluminum, One Piece Finish, High Strength Metal Gear, Digital Servo.
Features & Specifications
- Brushless motor design provides extremely high speed, top efficiency, and low power consumption.
- 4096 resolution and SIC (Single Integrated Circuit) for the highest performance and durability.
- Light weight design
- Aluminum middle case for optimized thermal dissipation.
- Strong Metal Gear
- Glitch-free
- Sophisticated error correction
- High-Speed, High-precision 12-bit AD converter and CPU calculation
- Fail safe
- Over current protection
- Over temperature protection
- Start sonorant
---------------------------------------------------------------------------- Dimensions: 40x37.80x20 mm
- Weight: 66.30 g
- Speed:
- @6.0V: .105 sec/60
- @7.4V: .085 sec/60
- @8.4V: .075 sec/60
- Torque:
- @6.0V: 14.92 kg-cm (207.09 oz-in)
- @7.4V: 18.40 kg-cm (255.39 oz-in)
- @8.4V: 20.89 kg-cm (289.95 oz-in)
- Matching Gear replacement: XG72320
Type: | |
---|---|
Vendor: | |
SKU: |
SM-5401-HV |
Weight: |
0.1 lb |
