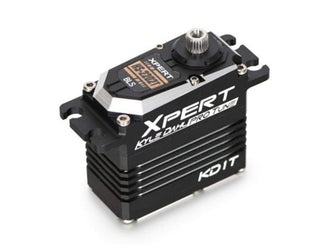

Xpert HS-2202T-HV KD1T Standard Size Full Aluminum Servo

Xpert Servo
|
HS-2202T-HV
$189.99 $0.00( / )
Features Developed and tuned by World Champion Helicopter Master, Kyle Dahl. Global 3D 2017 Competition Winning Servo. Ultra High Responsive cyclic algorithm software. Quick release cable that allows easy and quick installation for all helicopters. Brushless motor design provides extremely high speed, top efficiency, and low power consumption. 4096 resolution and SIC...
Add to Wishlist

Features

  • Developed and tuned by World Champion Helicopter Master, Kyle Dahl.
  • Global 3D 2017 Competition Winning Servo.
  • Ultra High Responsive cyclic algorithm software.

Quick release cable that allows easy and quick installation for all helicopters.

  • Brushless motor design provides extremely high speed, top efficiency, and low power consumption.
  • 4096 resolution and SIC (Single Integrated Circuit) for the highest performance and durability.
  • Light weight design
  • All Aluminum case for the best thermal dissipation and durability.
  • Strong Metal Gear
  • Glitch-free
  • Sophisticated error correction
  • High-Speed, High-precision 12-bit AD converter and CPU calculation
  • Fail safe
  • Over current protection
  • Over temperature protection
  • Start sonorant
  • 760us narrow band
  • Operating frequency up to 800Hz

Specifications

TypeStandard
Product NameHS-2202T-HV KD1T Standard Size Full Aluminum Servo
Part NameHS-2202T-HV
Power Supply6.0V~8.4V
Speed (sec/ 60°)@6.0V: 0.047 sec/60° @7.4V: .038 sec/60° @8.4V: .033 sec/60°
Torque (oz/in)@6.0V: 83.28 oz-in @7.4V: 102.71 oz-in @8.4V: 116.59 oz-in
Torque (kg/cm)@6.0V: 6.00 kg-cm @7.4V: 7.40 kg-cm @8.4V: 8.40 kg-cm
Dimensions40x37.80x20 mm
Weight73.6g
Frequency200/333 Hz
Range50~400 Hz
Center Position760us
ApplicationsHelicopter Tail
Type:

Servo

Vendor:

Xpert Servo

SKU:

HS-2202T-HV

Weight:

0.44 lb
